RO WATER TREATMENT SYSTEM



High Capacity Technology

Reverse osmosis systems are used to reject bacteria, sugars, proteins, particles, dyes, and other constituents that have a molecular weight of greater than 150-250 daltons from tap and brackish water. It is also capable of purifying water and remove salts and other impurities. WIN FLOW Water Treatment RO machine come with standard media pre-filters, chemical dosing, and antiscalant. These systems can be customized to fit individual customer and water application needs.

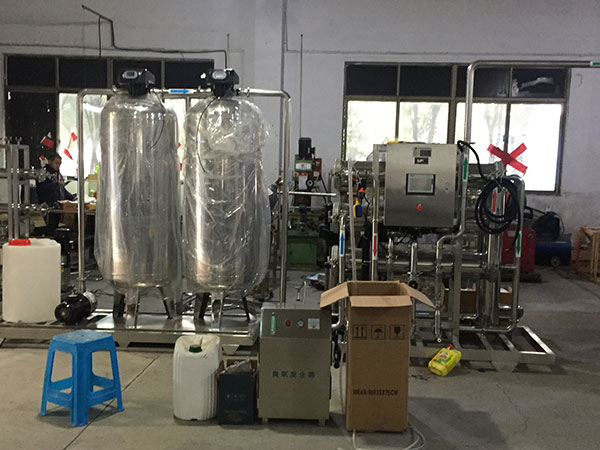

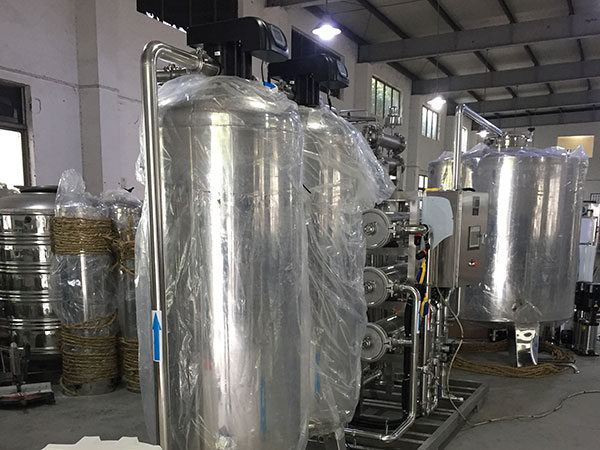

Compact Industrial RO System

The Win Flow RO series is considered to be one of the most compact industrial reverse osmosis systems in the market; it also features state of the art energy saving membranes.

When we design the Win Flow-RO series industrial reverse osmosis plants, we consider robust construction, user-friendly design, environmentally conservative operations, and long term reliability.

Economical and efficient, Win Flow-RO industrial reverse osmosis equipment incorporate the latest in RO technology to remove dissolved minerals, particles, organics, solids and other contaminants from water. Reverse Osmosis uses RO membranes as its core separation technology to reject these contaminants. Win Flow-RO use the most reputable membranes manufacturers such as Dow Film Tec and Hydranautics.



Specification

  • Max. feed water temperature: 42°C
  • Equipment upgrade for TDS over 5,000 ppm
  • Hydrogen Sulfide must be removed
  • Turbidity should be removed
  • Feed water TDS: 0-1,000 ppm
  • Hardness over 1 GPG requires antiscalant dosing
  • Max. Silica Tolerance: 60 ppm @ 60% recovery
  • Max. Iron content: 0.5 ppm
  • Feed water pressure: 1.5 to 5.5 Bar
  • Operating pressure: 10 to 16 Bar
  • pH tolerance range: 3-11
  • Operate at higher TDS by lowering recovery
